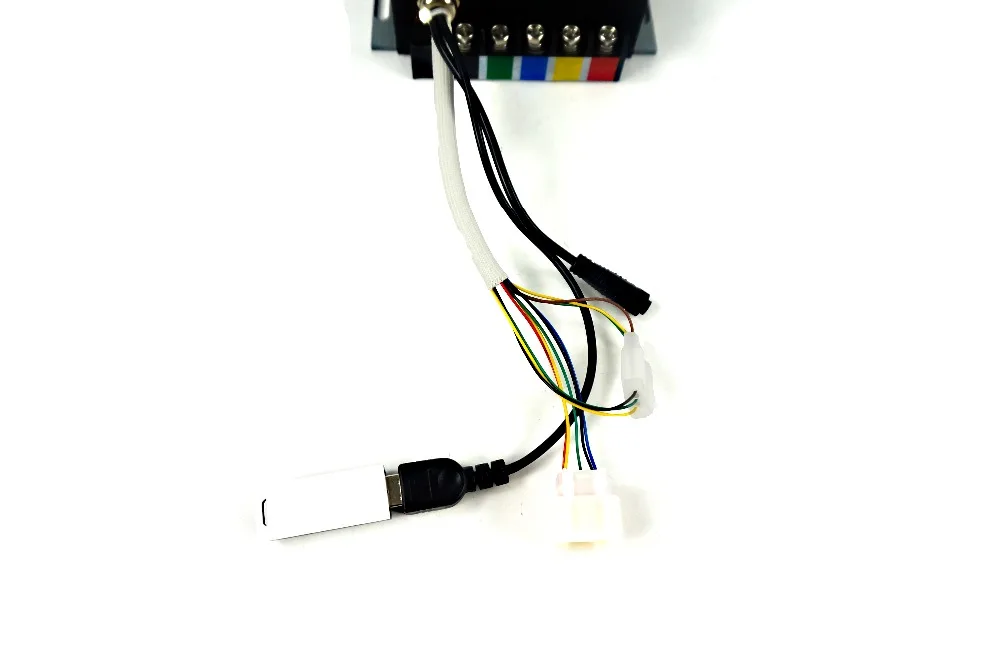

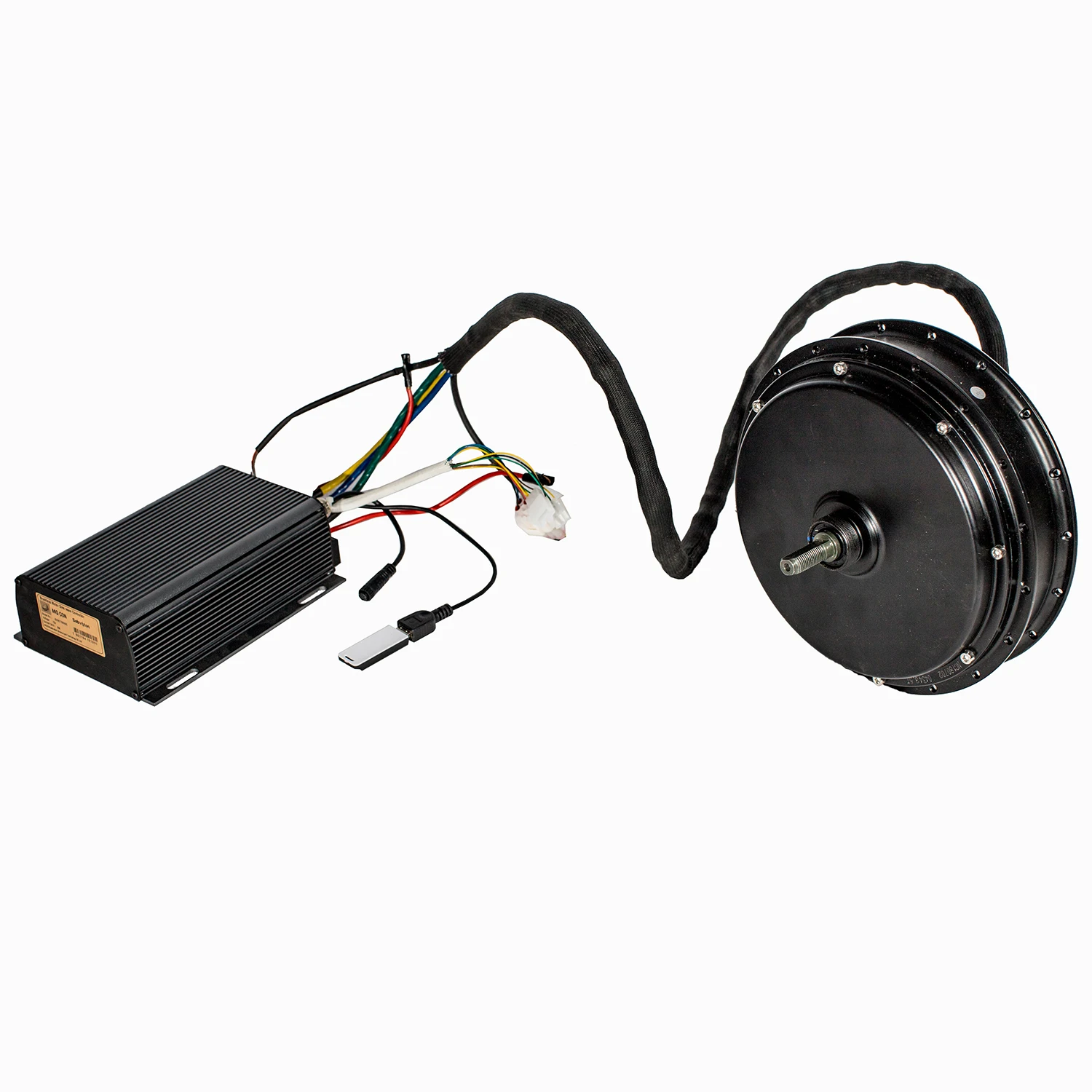

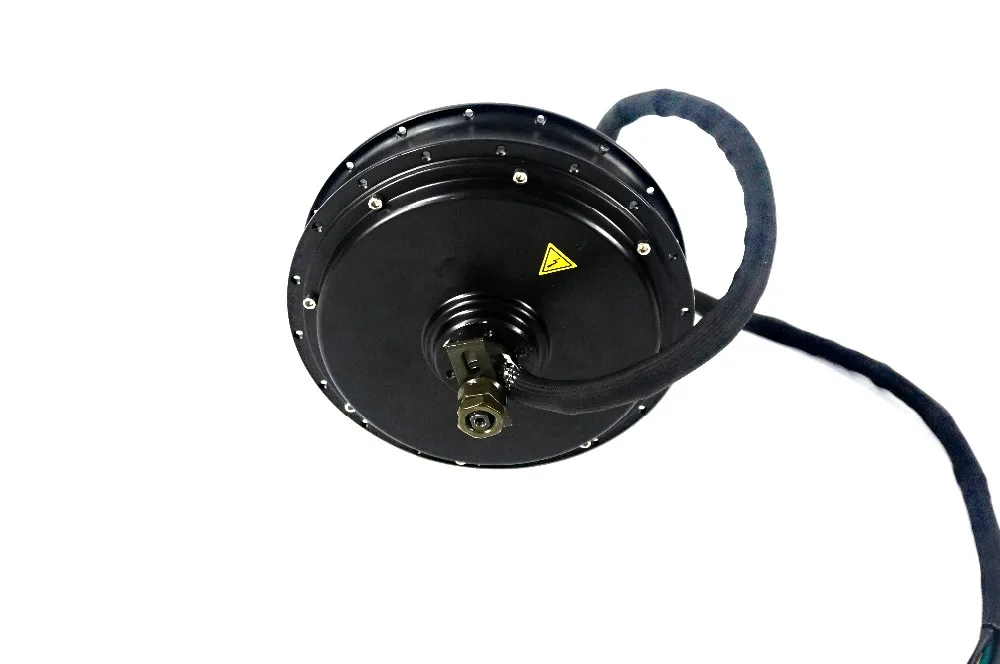

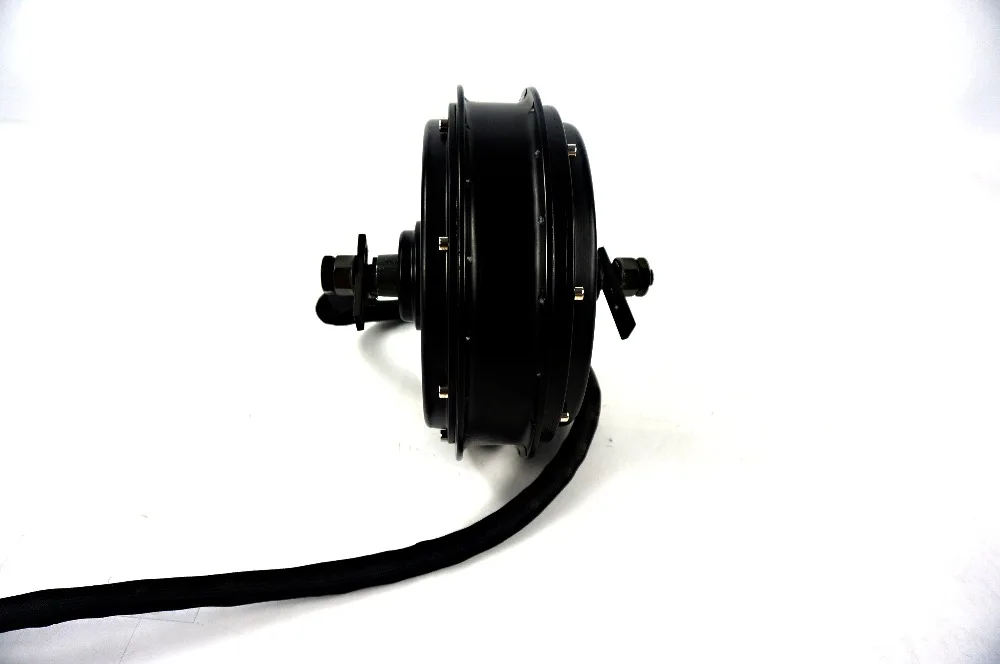

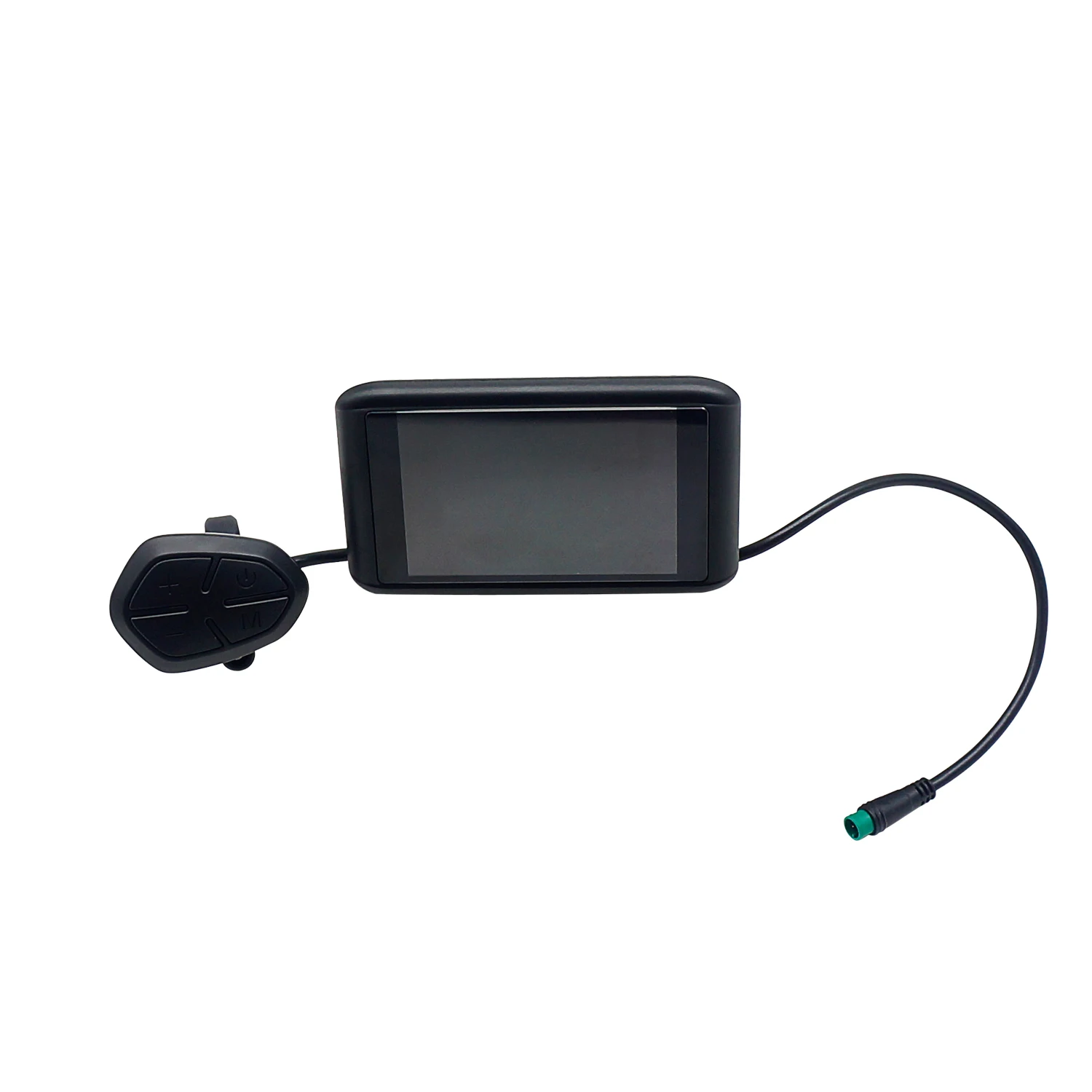

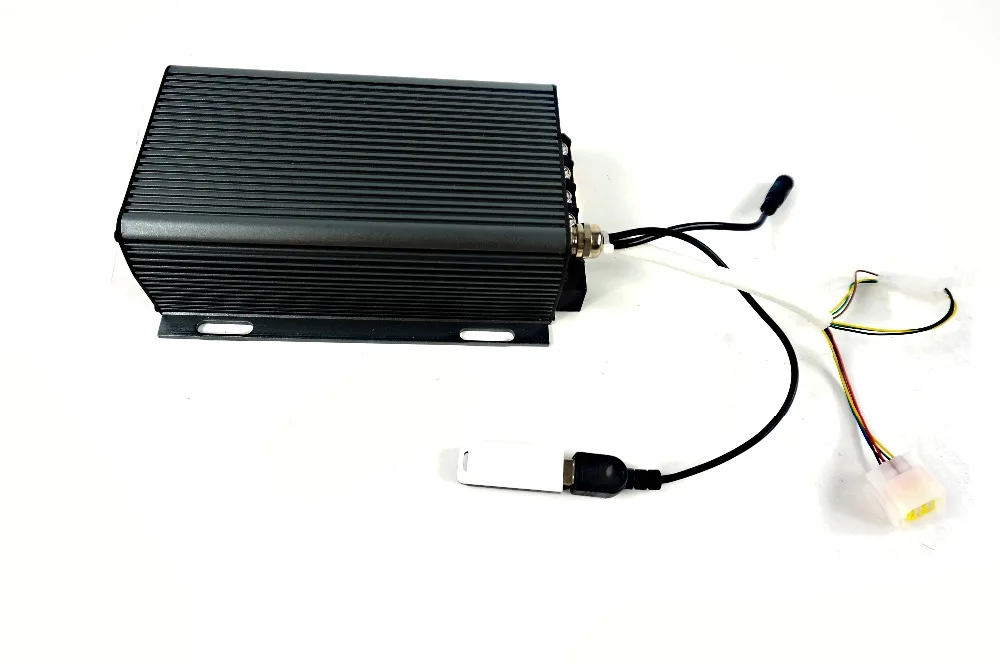

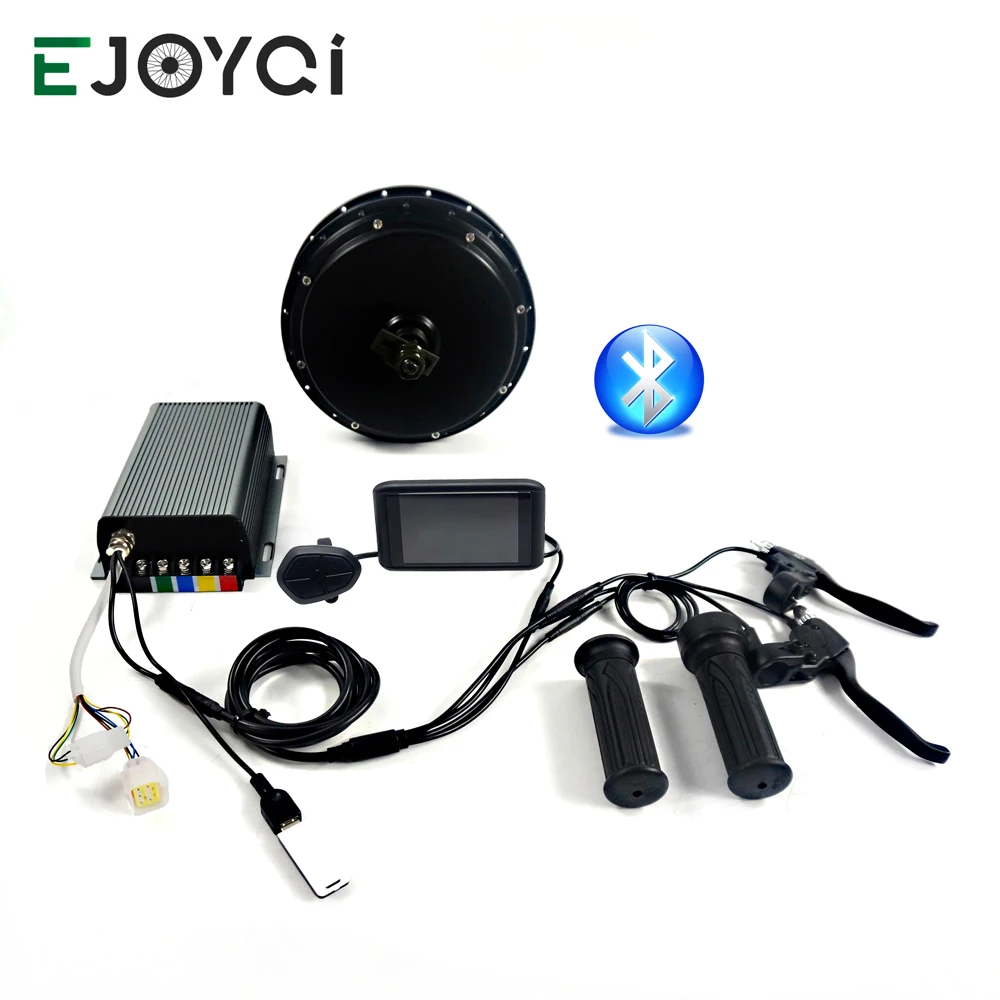

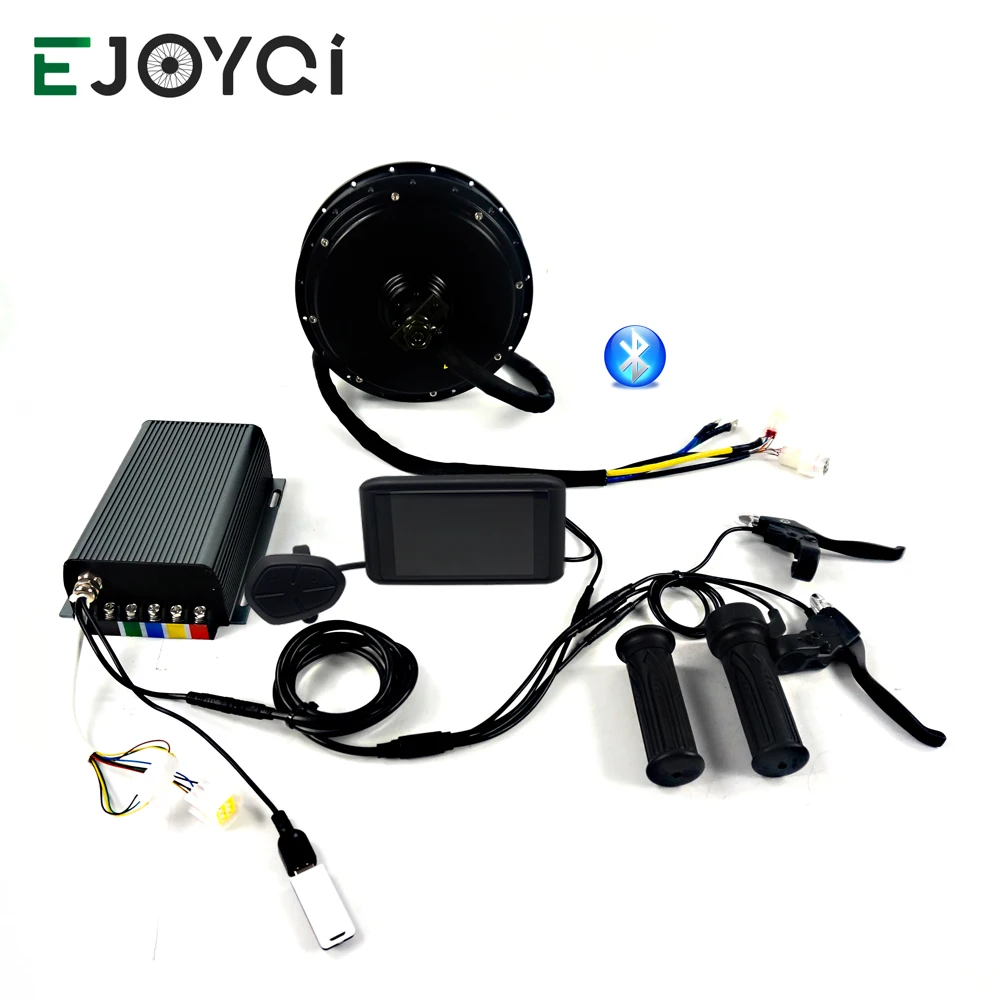

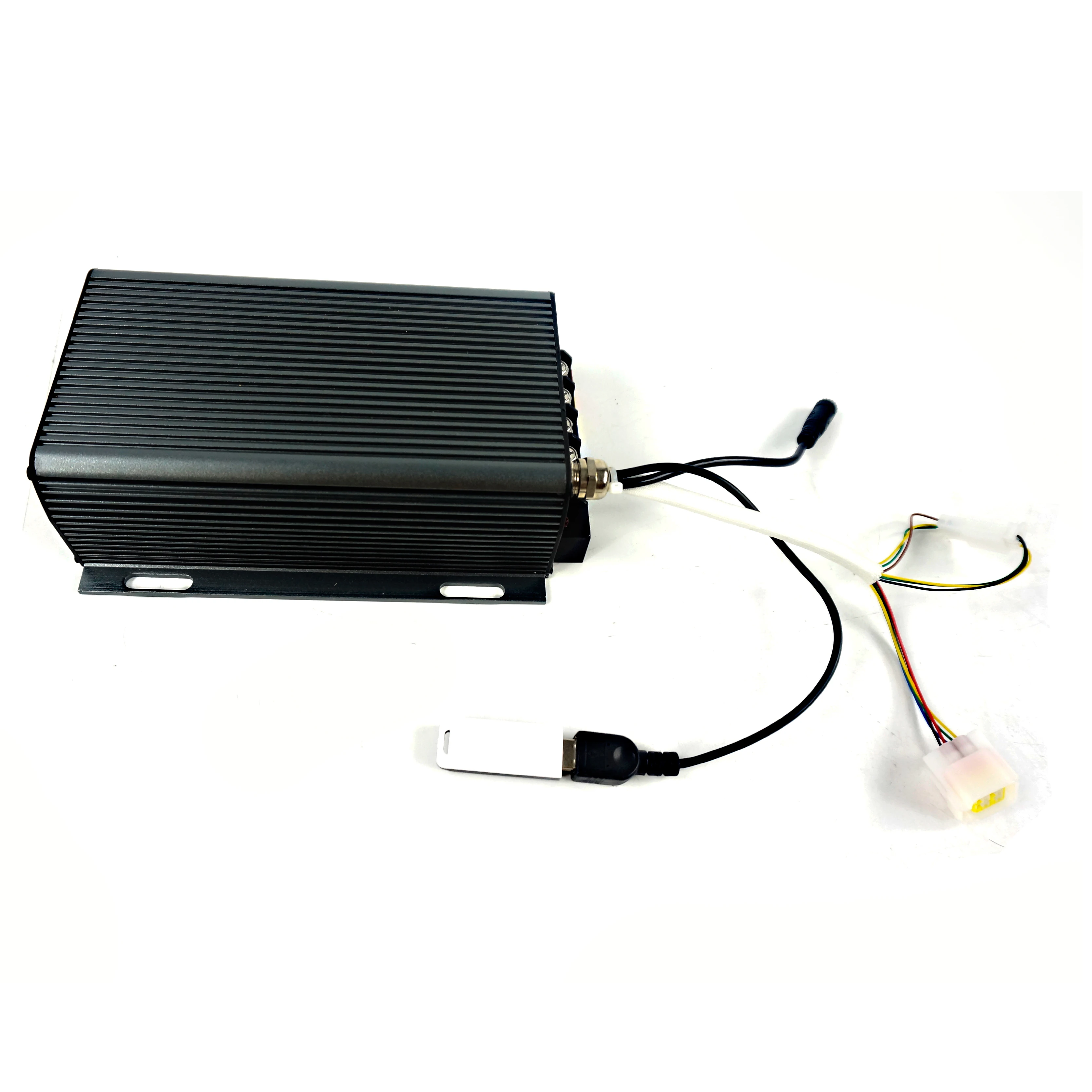

BLDC Hub Motor with Permanent Magnet Motor design Double axle out Spoke hole 3.4mm x 36pcs Matching Rim 16inch-26inch Magnet Height 50MM Pole Pairs 16 pairs Rated Power 3000W Max. Power 6000W Rated Voltage 72V( 36-72V Can be optional) Speed 80-100km/h Max No-load RPM 900RPM Max Torque 150N.M Max Efficiency 88% Continious current 45A Max current 80A (Peak 100A in short time) Brake type Disc brake Aluminium Cross Section of Phase wire 10 mm Hall sensor phasing angle 120 degree Temperature Sensor Optional Working Temperature 70℃,Peak 120℃ Waterproof Grade IP54 Color Black W./ G..W. 14kgs / 15kgs Size（cm） 34*34*33 Controller system The TFT display with controller is the 2.0 system. We upgrade it depending on the sinewave controller with the waterproof ,TFT display, Bluetooth Adapter, it is more functional and gives clients moreexperience. Controller Spec. Details. Model No. Voltage Max Battery Voltage DC max current Phase max current 72V80A 36V-72V 90V 80A 200A 18 Mosfets for both types. Size : 210*147*62mm Waterproof system for TFT display, throttle, brake levers. FUNCTIONS: 1.36v-72v TFT display Setting : 5 level speed control for throttle; wheel size choose; password setting; distance; time. 2.Programmable through PC and Bluetooth Adapter by IPhone or Android mobile phone : Voltage; DC Current ; e- Brake open & close; e-Brake Current ; Flux weakening open & close; Flux weakening Current ; Regenerative open & close; Regenerative Current; Temperature protection setting for motor & controller ; Error types and so on. Program by Bluetooth APP onMobile.
