contintavioletaotramirada: Ebike Mid Motor 36V 500W With 10A Battery Display Bafang BBS01B Electric Bicycle Mid Drive Motor Kit for E-Bike Conversion Kit

Top Ebike Mid Motor 36V 500W With 10A Battery Display Bafang BBS01B Electric Bicycle Mid Drive Motor Kit for E-Bike Conversion Kit 0

Cheap Ebike Mid Motor 36V 500W With 10A Battery Display Bafang BBS01B Electric Bicycle Mid Drive Motor Kit for E-Bike Conversion Kit 1

Discount Ebike Mid Motor 36V 500W With 10A Battery Display Bafang BBS01B Electric Bicycle Mid Drive Motor Kit for E-Bike Conversion Kit 2

Excellent Ebike Mid Motor 36V 500W With 10A Battery Display Bafang BBS01B Electric Bicycle Mid Drive Motor Kit for E-Bike Conversion Kit 3

Discount Ebike Mid Motor 36V 500W With 10A Battery Display Bafang BBS01B Electric Bicycle Mid Drive Motor Kit for E-Bike Conversion Kit 4

Excellent Ebike Mid Motor 36V 500W With 10A Battery Display Bafang BBS01B Electric Bicycle Mid Drive Motor Kit for E-Bike Conversion Kit 5

Brand Name BAFANG

Voltage 36V

Design Brushless

Wattage > 400w

Motor Type Side Hung Motor

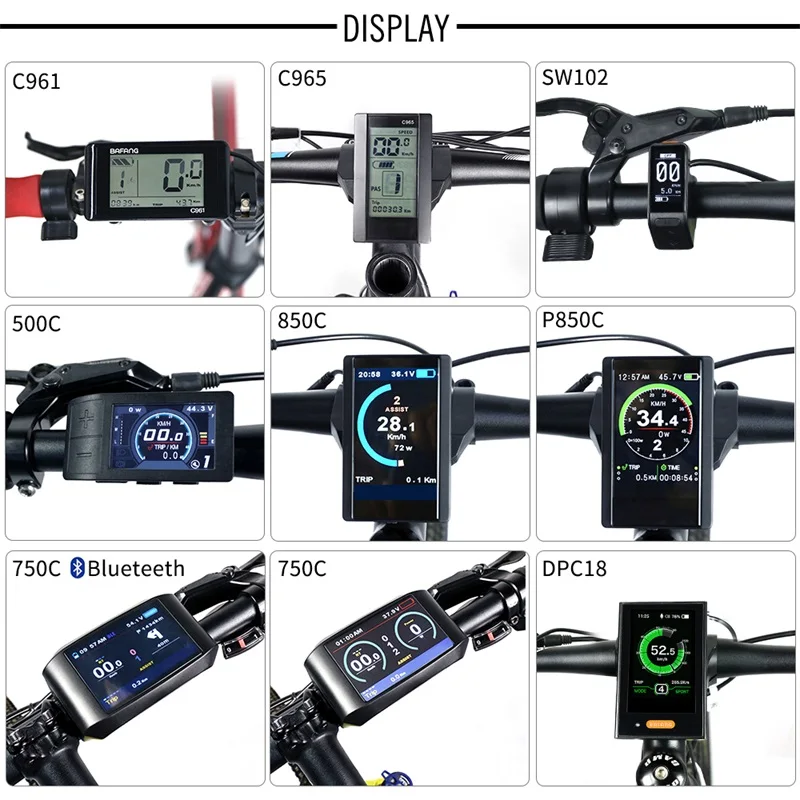

Bafang display C965 C961 P850C 500C SW102 850C DPC18

Bafang Motor type 36V 500W BBS02B

Chainwheel 44T/46T/48T/52T

Bottom bracket 68mm-73mm

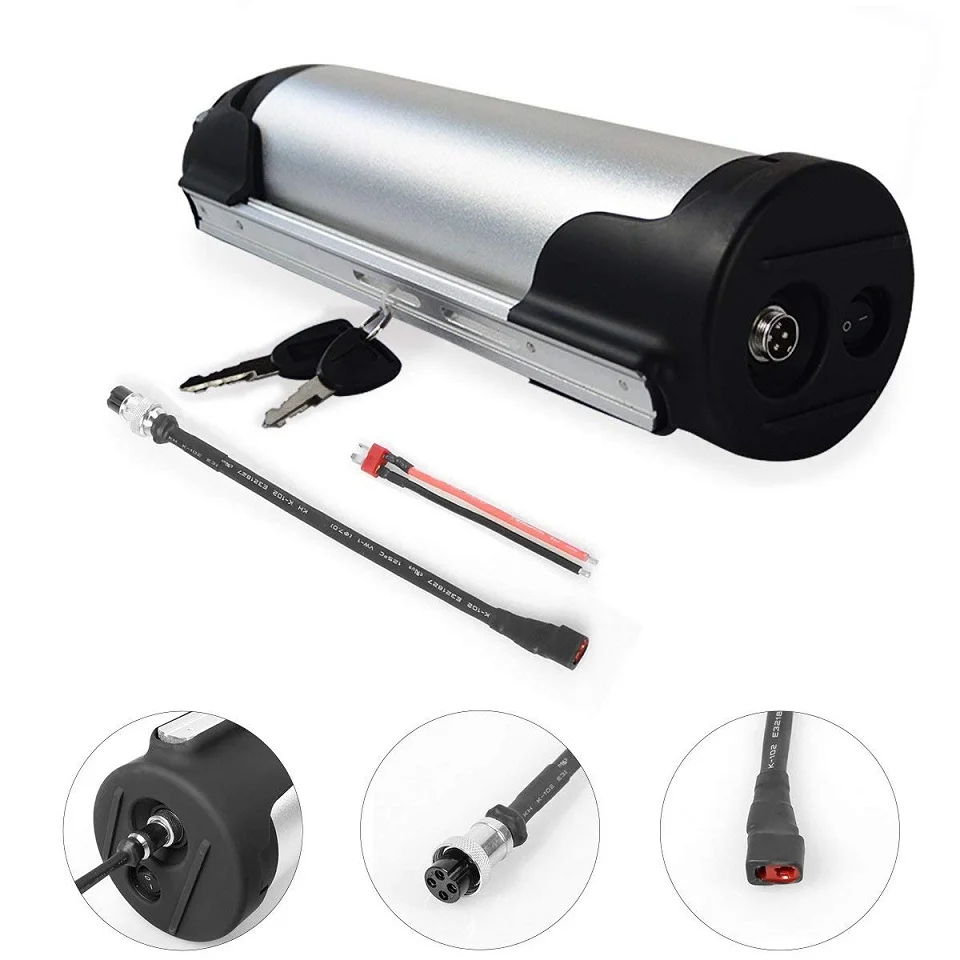

Battery Details 4kg 10A 36V

Battery Case Material ABS+Aluminium alloy

Battery And Motor Kits Warranty Time One Year

Motor Waterproof Rate IP65

Motor Weight 4.24Kg

Battery Size 90*320 mm

Motor Warranty Time One Year

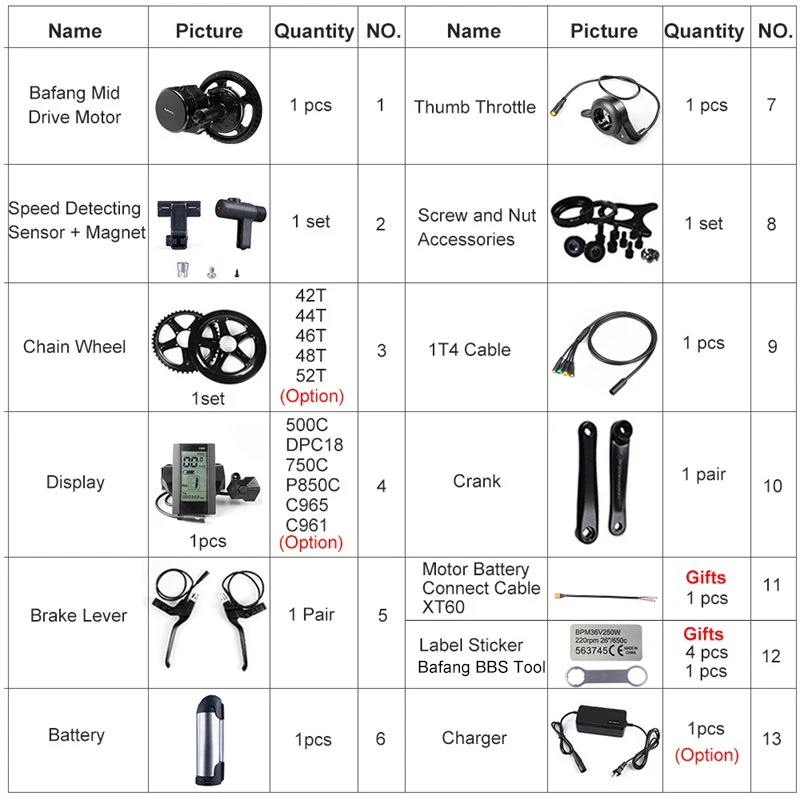

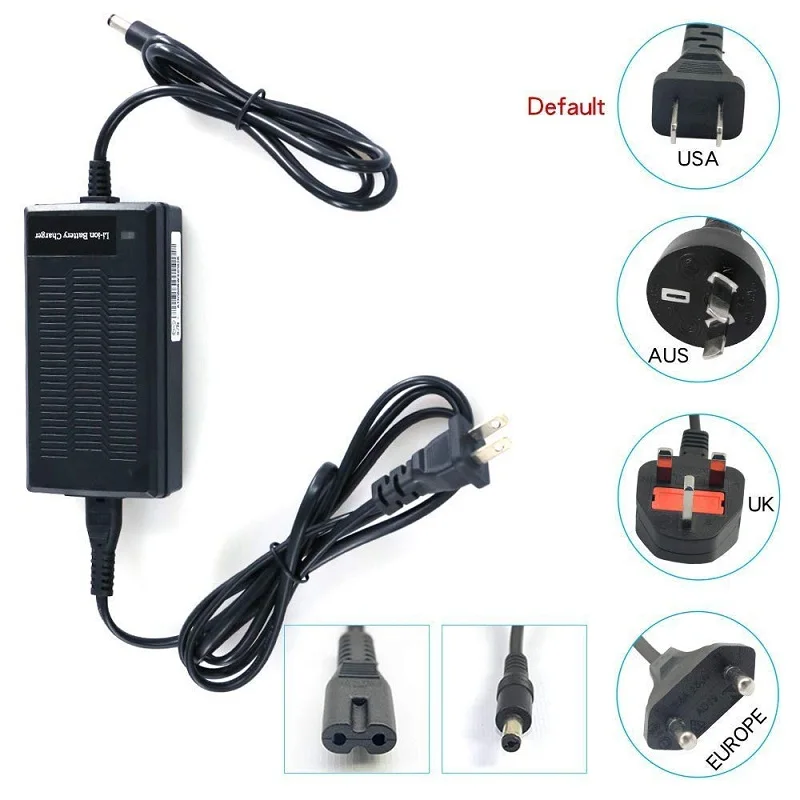

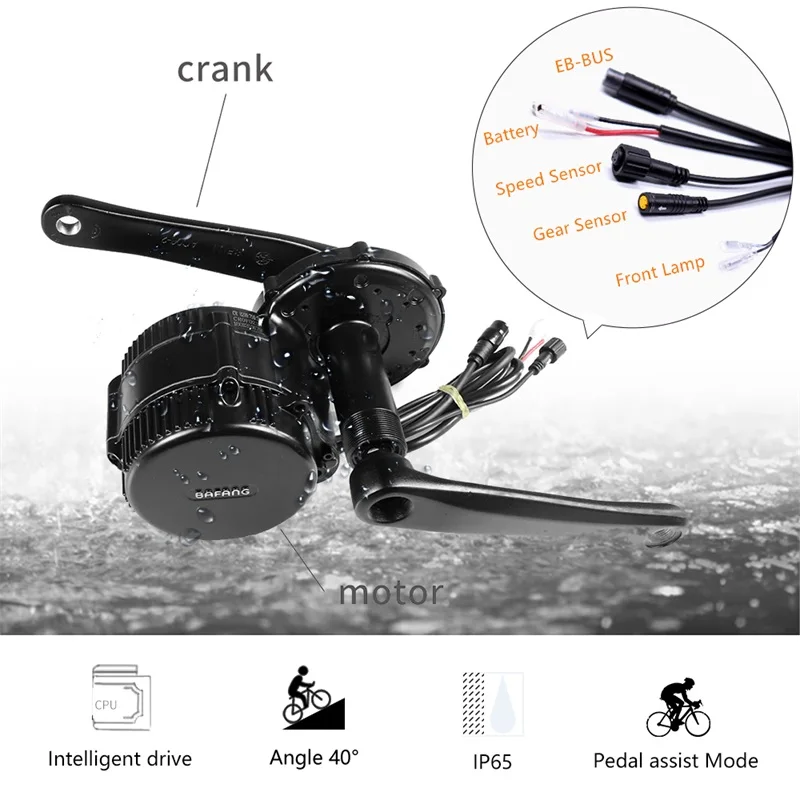

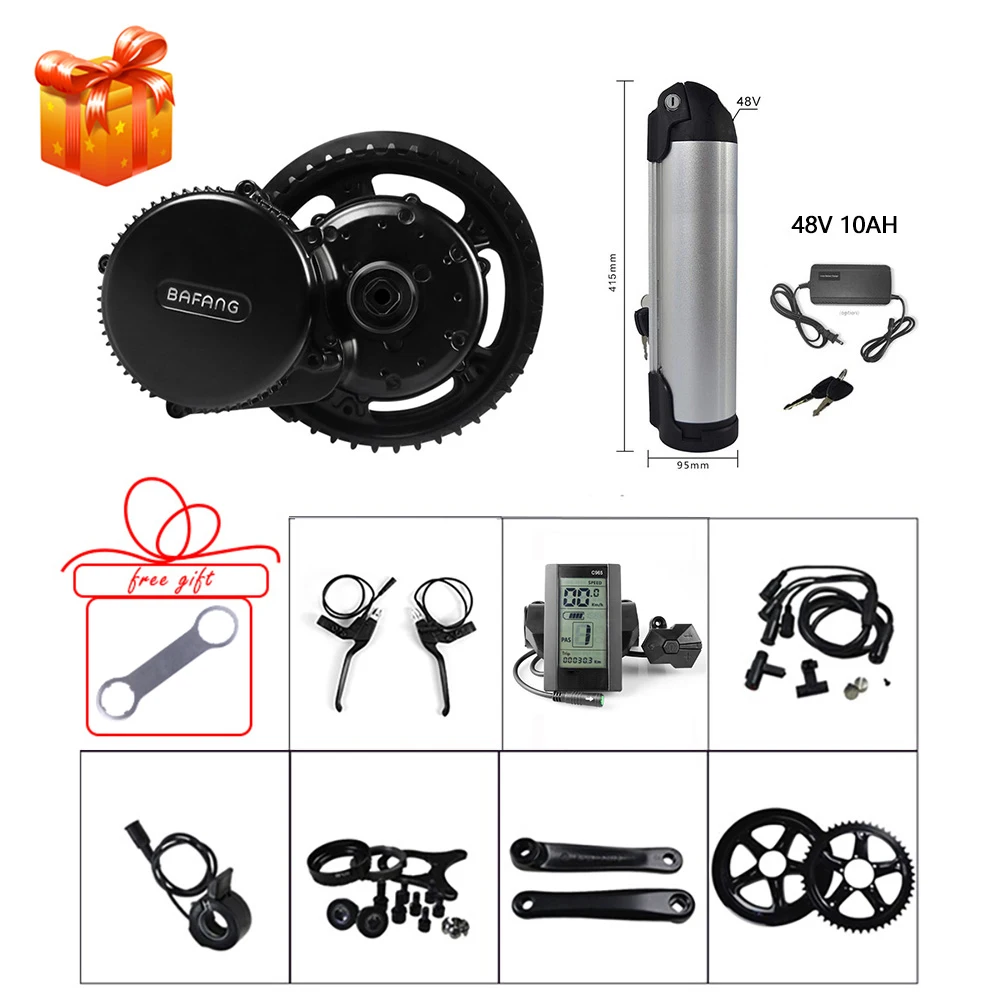

Purchase Note: This motor is fit for the Bike Bottom Brackets/BB is 68mm-73mm and the Inner Diamater of the bracket ( > 33.5mm) / should be not less than 33.5mm, please check carefully about your bicycle BB size.(Motor Design is fit for bottom bracket 68mm bike ,there is 8 pcs gaskets in the parcel can make it fit bottom bracket 73mm bike,please know) Motor Specification: Power:500W Voltage:36V Controller Current: 25A No Load Speed(RPM) :120 Load Speed(RPM):113 MAX Torque:100 N.m Efficiency: > 80% PAS SENSOR : Speed Sensor Reduction Ratio: 1 : 21.9 Centification:CE/EN 14764/ROHS Waterproof Grade:IP65 Net Motor Weight: 4.24kg Motor kits Weight:5.6-6.0kg Bracket bottom length:68mm Display Working Temperature:-20-80C 36V Battery Specifications: Nominal Voltage: 36V Nominal Capacity: 10Ah/14Ah Charge Voltage: 42V Standard Charging Current:2.0A Operating Charge Temperature:0～45℃ Operating Discharge Temperature:-20～60℃ StorageTemperature:-10～45℃ Packing list: BBS02B 36V 500W Mid Drive Motor * 1 pcs Speed Detecting Sensor + Magnet * 1 set Chain Wheel: 44T 46T 48T 52T (We can help you to change the chain wheel size) Display * 1 DPC18 750C P850C C965 C961 SW102 Brake Lever * 1 Pair (We can change these to Hydraulic Brake Sensor for free) Thumb Throttle * 1 pcs Screw and Nut Accessories * 1 set 1T4 Cable *1 pcs Crank* 1 pair Gifts: Battery XT60 Connect Cable and 6v Headlights * 1 set Label Stickers * 4pcs (For EU) Gaskets * 8 Pcs For Bottom Bracket 73mm Our Service: Each E-bike display four size chain wheel can choice,but system only give us 14 options showing,if you want to change chain wheel , change brake lever to hydraulic brake sensor or need other same price gifts remark on your order or leave me message both are ok,we will very pleasure to help you. Warranty :Our motor and Battery are one year.Other e-bikeparts is one month,maybe longer dueing toproblems. Overseas after-sales service station: Station in Netherland for EU , Station in Lac Vegas for US Canada. Message reply time : We will reply each clients message as soon as possible ,we will not let you wait too long. About Tax: EU: If you need tax service please make order inTAX SERVICE 18 usd DDP SHIPPING SERVICE (Your TAX Will Paid By Us) Germany,France,Spain,Netherlands,Italy,Bulgaria,Belgium Bulgaria, Poland,Denmark,Finland,Portugal,Sweden,Slovakia,Slovenia,Greece,Hungary, Czech Republic ,Lithuania,Luxembourg,Romania,Ireland,Estonia, Austria Russian Federation,US,UK: Tax Service Include Other Country:You can remark Tax requirements on your order or leave me message. Recommended E-bike Accessories Warranty Aggrement: Motor Kits,warranty time 12 month except phycial damage and wrong operation. Battery,warranty time 12 month except phycial damage and wrong operation. Accessories,30 days except phycial damage and wrong operation Return & Refund: It is our pleasure to see customers have fun with our products, if you decide to return the items within 15 days after receipt,we will refund you, the return items must be in original conditions. Feedback: Your satisfaction and positive feedback is very important for us, it will be very kind of you to leave us 5 stares feedback, if you have any problems, don`t hesitate tocontact us, we will do our best to serve with you. Warranty Aggrement: Motor Kits,warranty time 12 month except phycial damage and wrong operation. Battery,warranty time 12 month except phycial damage and wrong operation. Accessories,30 days except phycial damage and wrong operation Return & Refund: It is our pleasure to see customers have fun with our products, if you decide to return the items within 15 days after receipt,we will refund you, the return items must be in original conditions. Feedback: Your satisfaction and positive feedback is very important for us, it will be very kind of you to leave us 5 stares feedback, if you have any problems, don`t hesitate tocontact us, we will do our best to serve with you. Top Ebike Mid Motor 36V 500W With 10A Battery Display Bafang BBS01B Electric Bicycle Mid Drive Motor Kit for E-Bike Conversion Kit 0
