Waterproof Color display 48v500w Shengyi Dgw22c Rear Cassette Electric Bike Conversion Kit Brushless Hub Motor With Ebike System

Brand Name OLOEY

Voltage 48V

Design Brushless

Wattage > 400w

Motor Type Brushless Gear Hub Motor

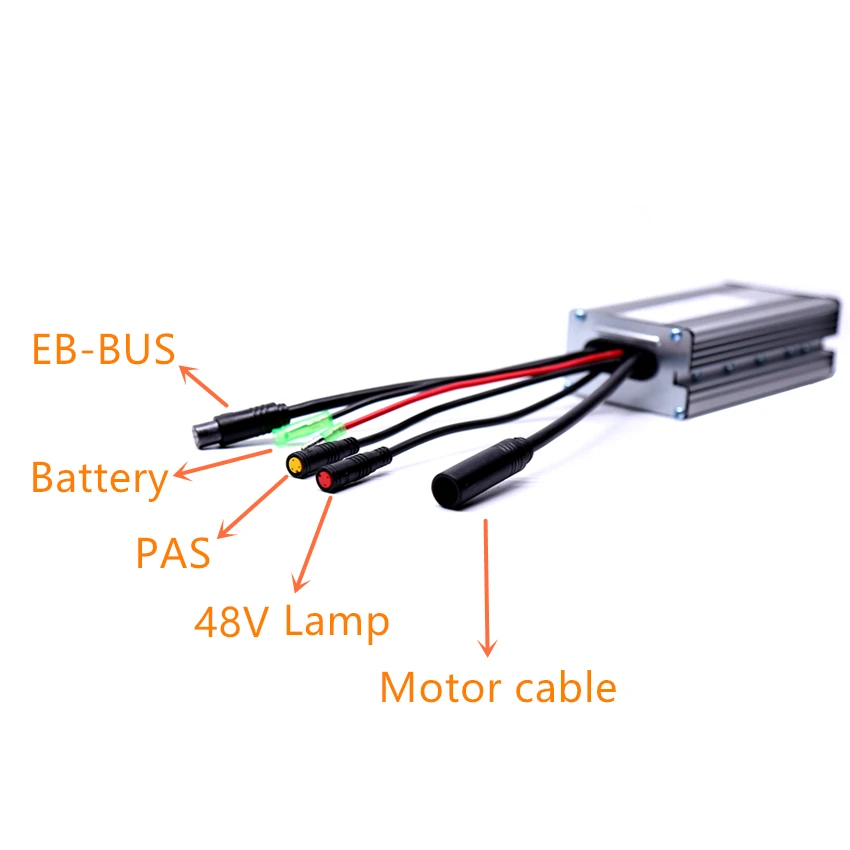

Controller Sin wave 48V22AH 9Mosfets

Display 500C/850C color display

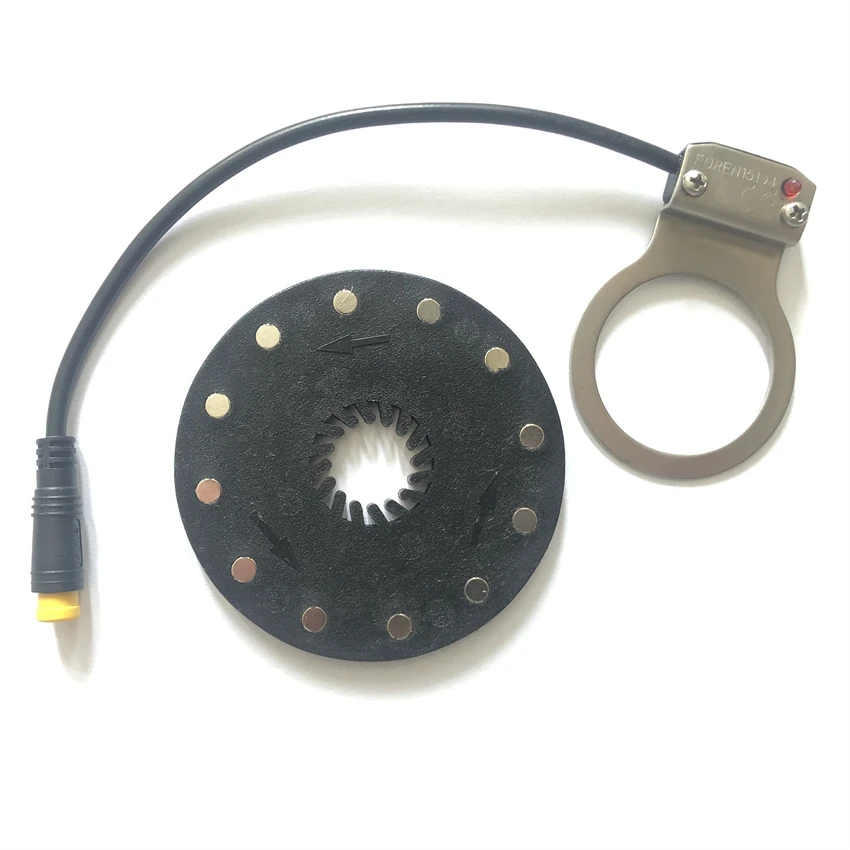

PAS DH12 PAS (12 magnets)

Throttle Thumb throttle

Brake sensor Optional

Rated Power 500W

Fork size 135mm

Connectors type Waterproof connectors

Controller Size 115mm*54mm*30mm

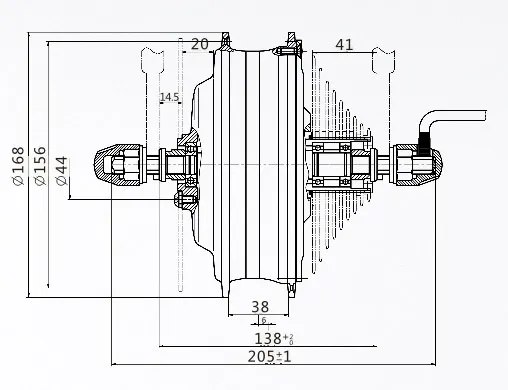

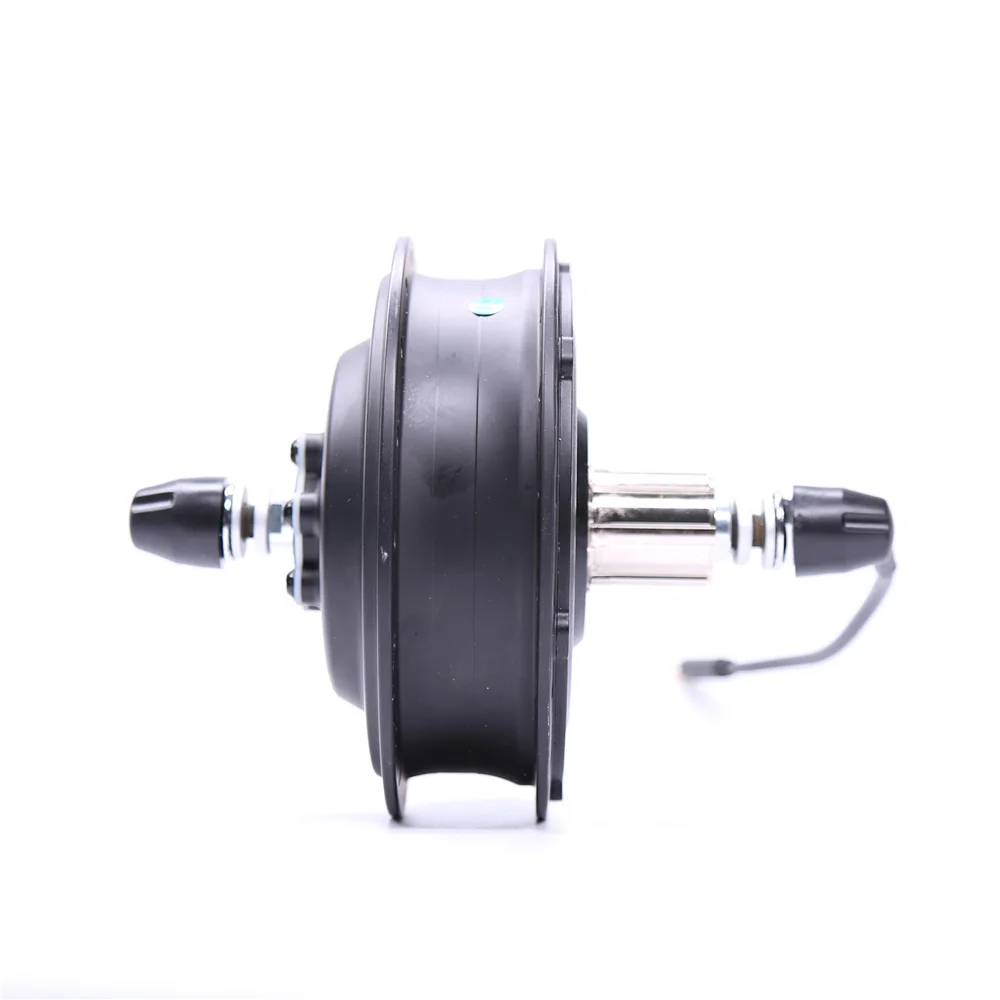

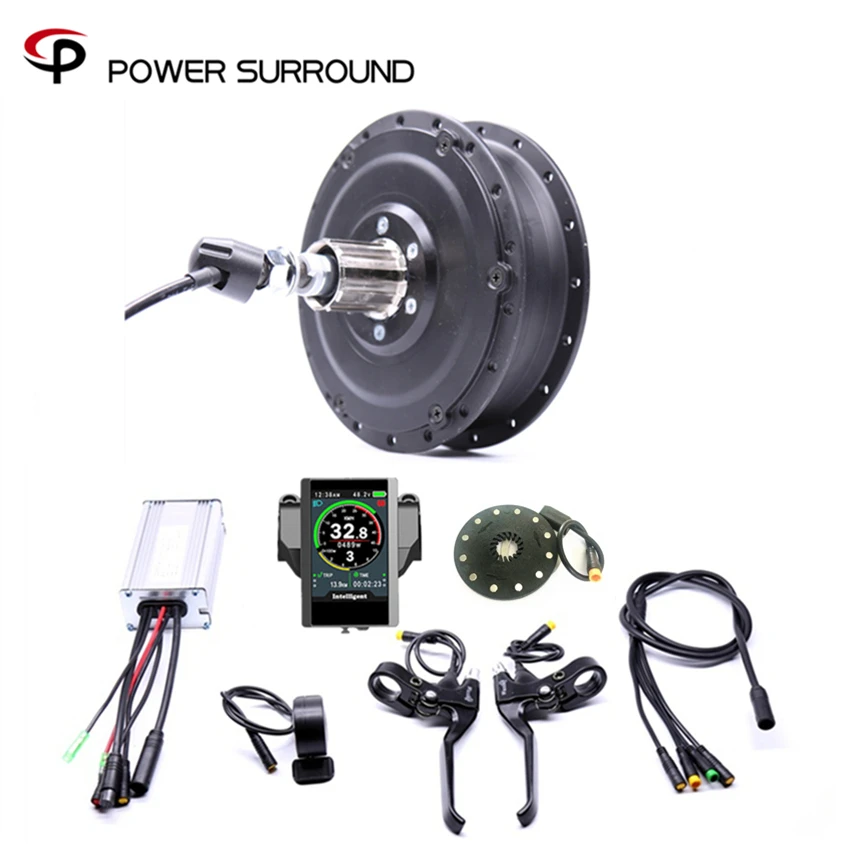

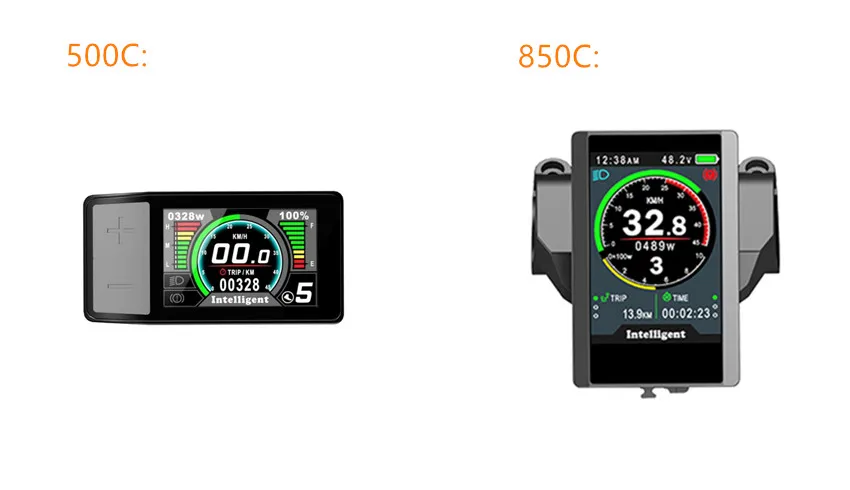

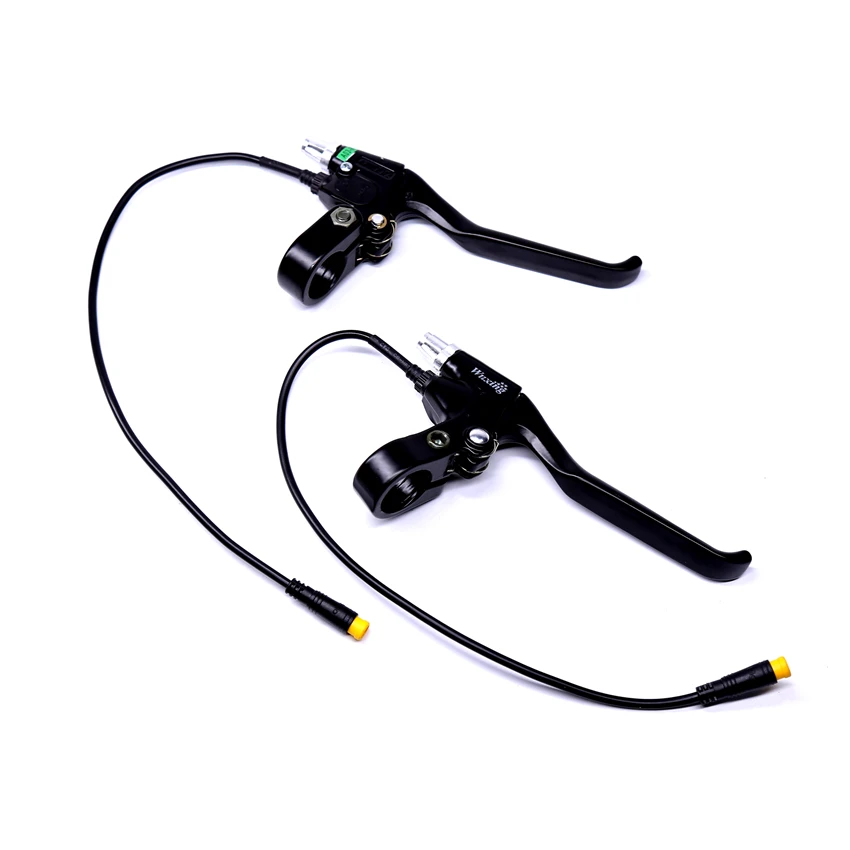

Specifications of the motor in this kit Rim size: 20’’~28’’ Spokehole: 12G,36Holes,Diameter3.2~3.4mm Voltage: 48V Ratedpower: 500W Efficiency(%) ≥80% Cableside: Right Magnetrate: 16Poles Reductiongearratio: 1:5.3 Forksize: 135mm Insidespeedsensor: 1 Hallsensor: With Freewheel: Cassette9-10S Brake: Discbrake/V-brake Classificationofwaterproof: IP54 Weight: 3.9Kg If you need spoked rim,please leave us amessage. Packing List: 1) Shengyi 48V500W rear Cassettehub motor 2)Sin-wave48V22A 9mosfets controller 3) EB-BUS 1T4 waterproof cable (80cm) 4) Motor cable (100cm) 5) Color display (You can choose 500C or 850C, see photos below) 6) Left&right Thumb throttle 7) DH12PAS (12magnets) 8) EB-BUS and PAS extension cable (Suitable for the battery installed at any position.) 9) Cut off powerBrakelevers (If you prefer thecable brake or hydraulic brake sensor, please leave us a message.) ​500C and 850C color display for choices: About Us: We believe that cycling is for everyone, not just the fit and the young. Whether riding a mountain bike through a forest track,climbing the hills on a cross bike, screaming down the hills on a road bike or pulling the kids around on a tag along, few things beat the fun and exhilaration of cycling. It's worth mentioning that with the contribution of electricity,now there is no reason for you to miss out. That's what we dedicated and why we started our online shopwhich focus on electric bicycle series ,such as electric bike conversion kits, mountain and city electric bikes, fat tyre electric bikes and relative parts for electric bicycles. All products we are producing reflect our interests and professionalism.No matter whether you are looking for e-cycles for communiting,touring or random,we can help you with the best choice! Useful Tips: •Warranty One year guarantee. Within 15 days(base on the delivery data):We will cover the round trip shipping postage. 15days to one year:We will cover the return postage. •Packing&Shipping 5 Layer Double Wall Carton,and DHL,FEDEX,TNT,EMS for shipping choise. •Return Policy we will refund you if you return the items within 15 days of your receipt of the items and it is only the reason of product itself like defect,damage,anything that is seller's fault,not the buyer's personal preference or failure to use.
