Bafang Ebike Mid Drive Motor BBSHD 1000W 68MM 100MM 120MM BBS02B 750W 500W BBS01B 350W 250W 36V 48V Electric Bicycle Conversion

Voltage 48V

Design Brushless

Wattage > 400w

Motor Type Side Hung Motor

Brand Name BLUENERGY

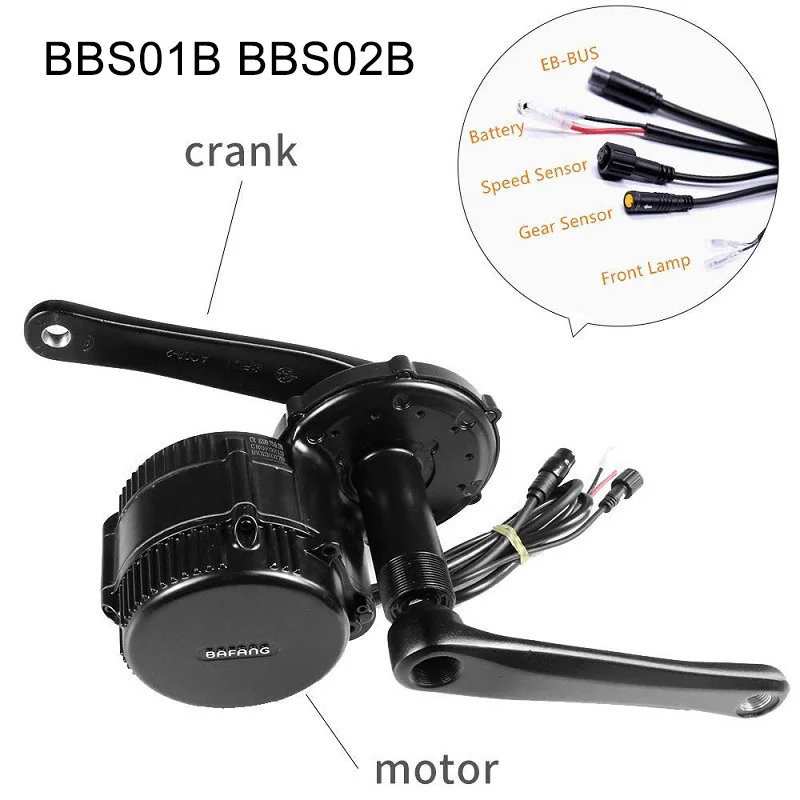

Bafang Motor Model 1 MM G340.250 BBS02B 36V 250W

Bafang Motor Model 2 MM G340.350 BBS02B 36V 350W

Bafang Motor Model 3 MM G340.350 BBS02B 48V 350W

Bafang Motor Model 4 MM G340.500 BBS02B 36V 500W

Bafang Motor Model 5 MM G340.500 BBS02B 48V 500W

Bafang Motor Model 6 MM G340.750 BBS02B 48V 750W

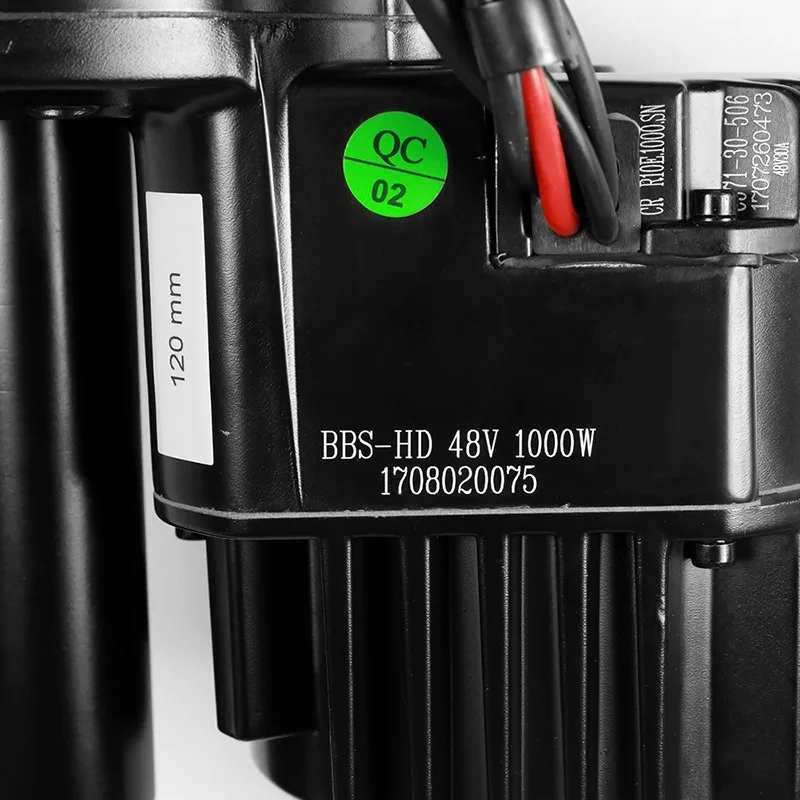

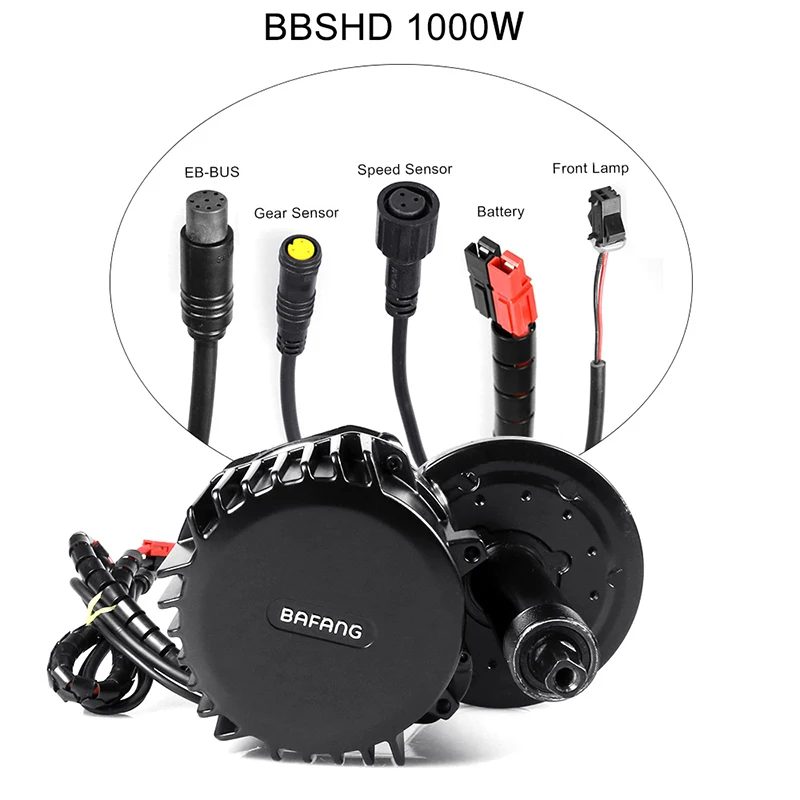

Bafang Motor Model 7 BBSHD G320 48V 1000W 68 MM

Bafang Motor Model 8 BBSHD G320 48V 1000W 100 MM

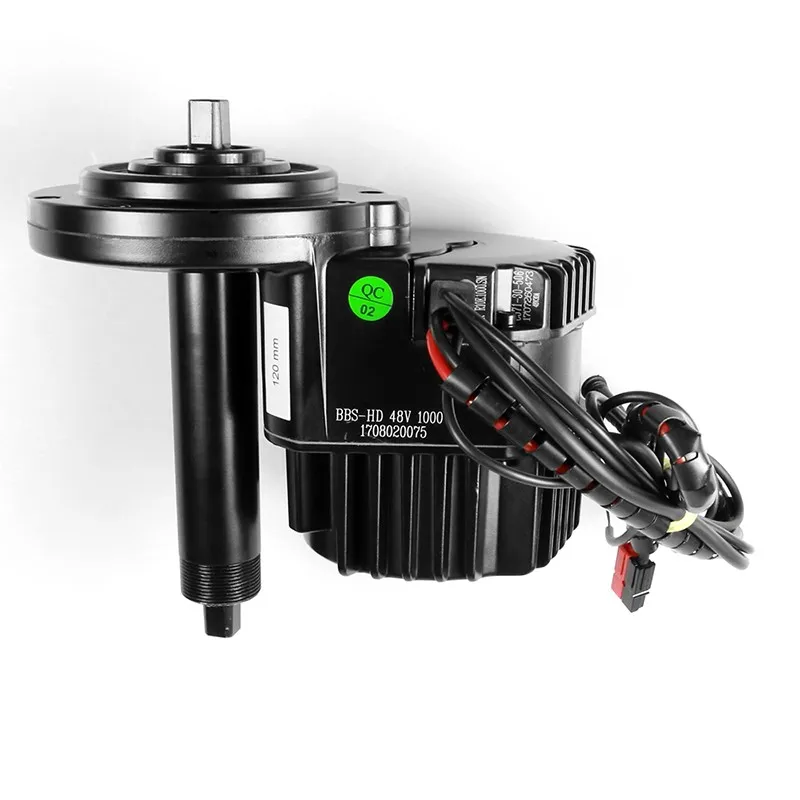

Bafang Motor Model 9 BBSHD G320 48V 1000W 120 MM

Motor Waterproof Rating IP 65

Motor Warranty One Year

Packing List: Motor * 1 PCS BBS01B Motor Specification: Power:250WVoltage:36V Controller Current: 15A No Load Speed(RPM):83-87 Load Speed(RPM):78-83 MAX Torque:80 N.m Efficiency:>80% PAS SENSOR : Speed Sensor Reduction Ratio: 1 : 21.9 Centification:CE/EN 14764/ROHS Waterproof Grade:IP65 Motor Weight: 3.98kg Bracket bottom length:68mm Operation Temperature:-20-45℃ Power:350WVoltage:36V / 48V Controller Current: 18A / 15A No Load Speed(RPM):83-87 Load Speed(RPM):78-83 MAX Torque:100 N.m Efficiency:>80% PAS SENSOR : Speed Sensor Reduction Ratio: 1 : 21.9 Centification:CE/EN 14764/ROHS Waterproof Grade:IP65 Motor Weight: 4.24kg Bracket bottom length:68mm Operation Temperature:-20-45℃ BBS02BMotor Specification: Power:500WVoltage:36V / 48V Controller Current: 25A / 18 A No Load Speed(RPM):120 Load Speed(RPM):113 MAX Torque:100 N.m Efficiency:>80% PAS SENSOR : Speed Sensor Reduction Ratio: 1 : 21.9 Centification:CE/EN 14764/ROHS Waterproof Grade:IP65 Net Motor Weight: 4.24kg Motor kits Weight:5.6-6.0kg Bracket bottom length:68mm Display Working Temperature:-20-80C Power:750WVoltage:48V Controller Current: 25A No Load Speed(RPM):140-160 Load Speed(RPM):120-135 MAX Torque:160 N.m Efficiency:>85% PAS SENSOR : Speed Sensor Reduction Ratio: 1 : 21.9 Centification:CE/EN 14764/ROHS Waterproof Grade:IP65 Net Motor Weight: 4.24kg Motor kits Weight:5.6-6.0kg Bracket bottom length:68mm Motor Operation Temperature:-20℃-45℃ Display Working Temperature:-20℃-80℃ BBSHDMotor Specification: Power:1000WVoltage:48V No Load Speed(RPM):160 Load Speed(RPM):140-150 MAX Torque:160 N.m Efficiency:>80% PAS SENSOR : Speed Sensor Reduction Ratio: 1 : 21.9 Centification:CE/EN 14764/ROHS Waterproof Grade:IP65 Net Motor Weight: 5.6kg Bracket bottom length:68mm100mm 120mm Motor Operation Temperature:-20℃-45℃ Display Working Temperature:-20℃-80℃ About Tax: EU: If you need tax service please make order inTAX SERVICE 18 usd DDP SHIPPING SERVICE (Your TAX Will Paid By Us) Germany,France,Spain,Netherlands,Italy,Bulgaria,BelgiumBulgaria, Poland,Denmark,Finland,Portugal,Sweden,Slovakia,Slovenia,Greece,Hungary, Czech Republic ,Lithuania,Luxembourg,Romania,Ireland,Estonia,Austria Russian Federation,US,United Kingdom:TAX Service Include. Other Country:You can remark Tax requirements on your order or leave me message. Warranty Aggrement: Motor Kits,warranty time 12 month except phycial damage and wrong operation. Battery,warranty time 12 month except phycial damage and wrong operation. Accessories,30 days except phycial damage and wrong operation Return & Refund: It is our pleasure to see customers have fun with our products, if you decide to return the items within 15 days after receipt,we will refund you, the return items mustbe in original conditions. Feedback: Your satisfaction and positive feedback is very important for us, it will be very kindof you to leave us 5 stares feedback, if you have any problems, don`t hesitate tocontact us,we will do our best to serve with you.
